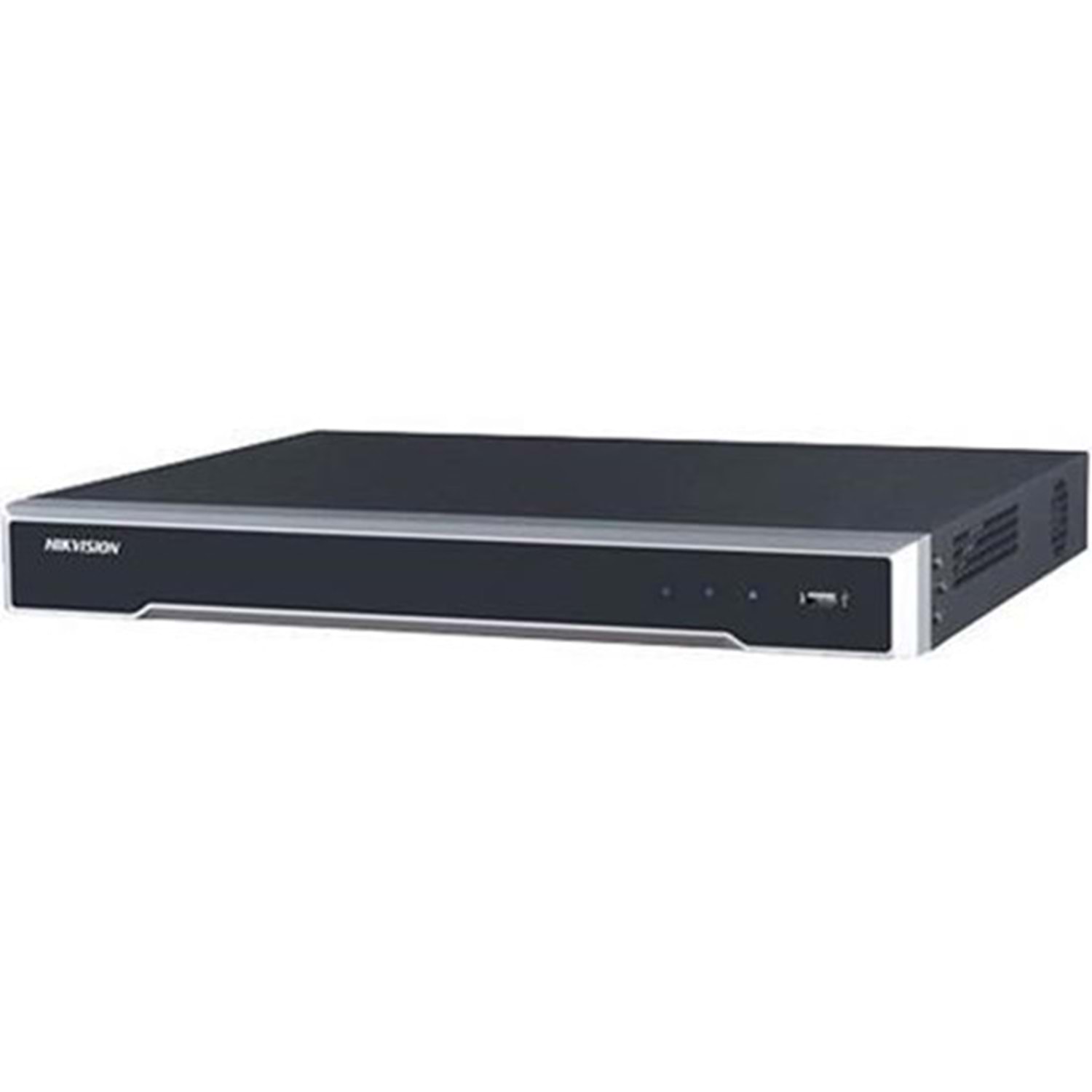

16-ch 1U 4K NVR
Up to 16 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 4K high-definition live view, storage and playback
Up to 4-ch @ 1080p decoding capacity
Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Compatible with third-party network cameras
Decoding
Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
Video resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback : 16-ch
Capability : 1-ch @ 8 MP / 4-ch @ 1080p
Network
Incoming/outgoing bandwidth : 80 Mbps ,160 Mbps
External interface
Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB interface : 2 × USB 2.0
General
Power supply : 12 VDC,? 40W
Consumption (without HDD) : ? 15W
Working temperature : -10 to +55º C (+14 to +131º F)
Working humidity : 10 to 90 %
Dimensions (W × D × H) : 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight (without hard disk) : ? 1.8 kg (4.0 lb)
Chassis : 1U chassis
Video/Audio input
IP video input : 16-ch,Up to 8 MP resolution
Two-way audio input : 1-ch, RCA (2.0 Vp-p, 1 k ?)
Video/Audio output
VGA output : 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output : 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording resolution : 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Audio output : 1-ch, RCA (Linear, 1 K?)
Network management
Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA : 2 SATA interfaces
Capacity : Up to 6TB capacity for each disk
